ATAN2

Description

Returns the angle between the x-axis and a line segment from the origin (0,0) to specified coordinate pair (`x`,`y`), in radians.

Sample Usage

ATAN2(5,4)

ATAN2(A3)

Syntax

ATAN2(x,y)

• x - The x coordinate of the endpoint of the line segment for which to calculate the angle from the x-axis.

• y - The y coordinate of the endpoint of the line segment for which to calculate the angle from the x-axis.

Notes

• The DEGREES function can be used to convert the result of ATAN into degrees.

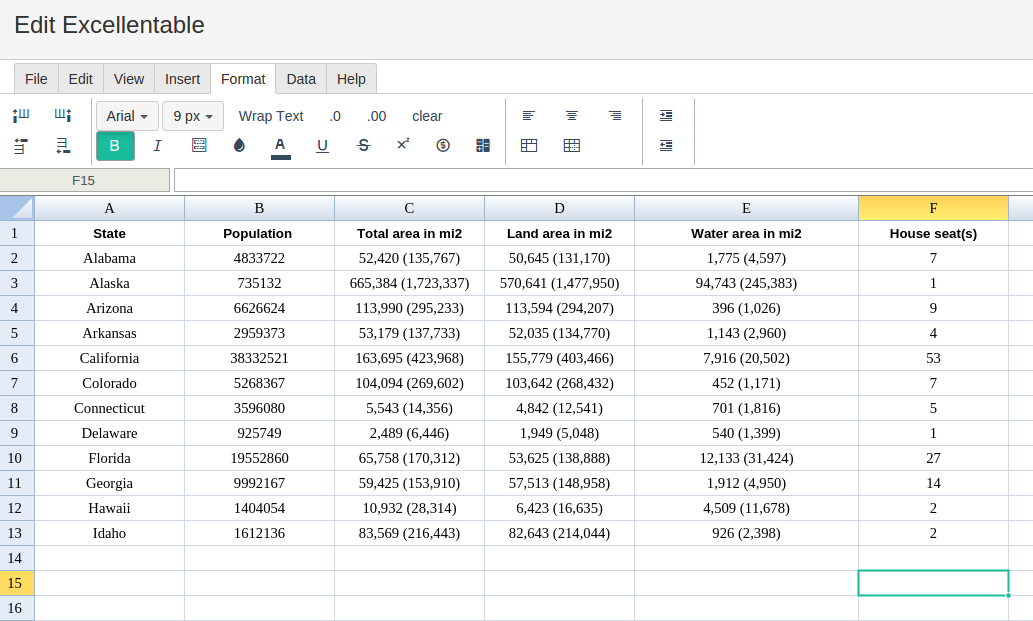

Step 1: To use the ATAN2 Formula, simply begin with your edited Excellentable:

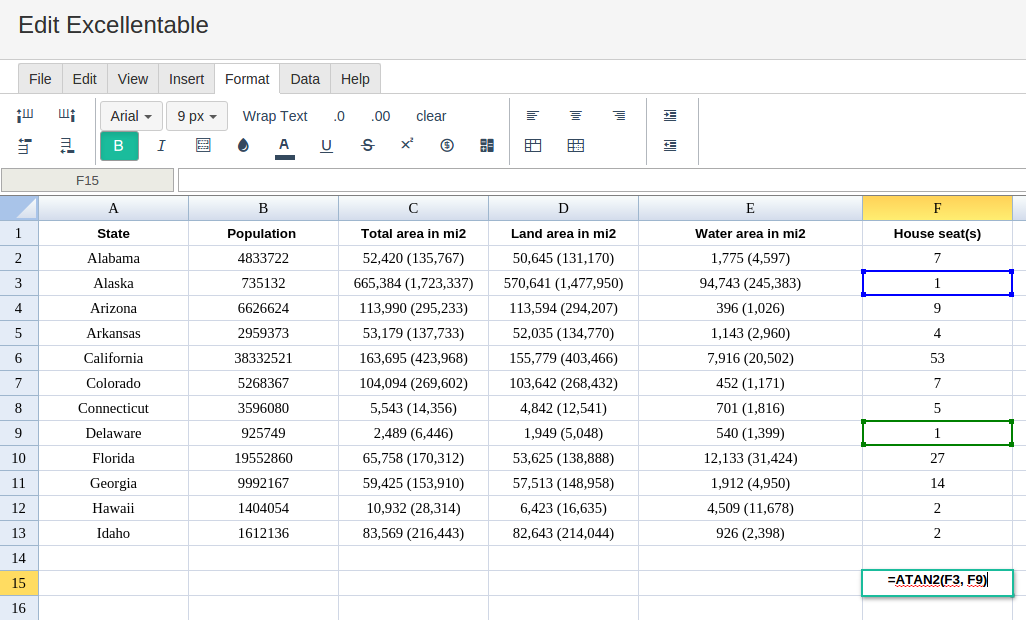

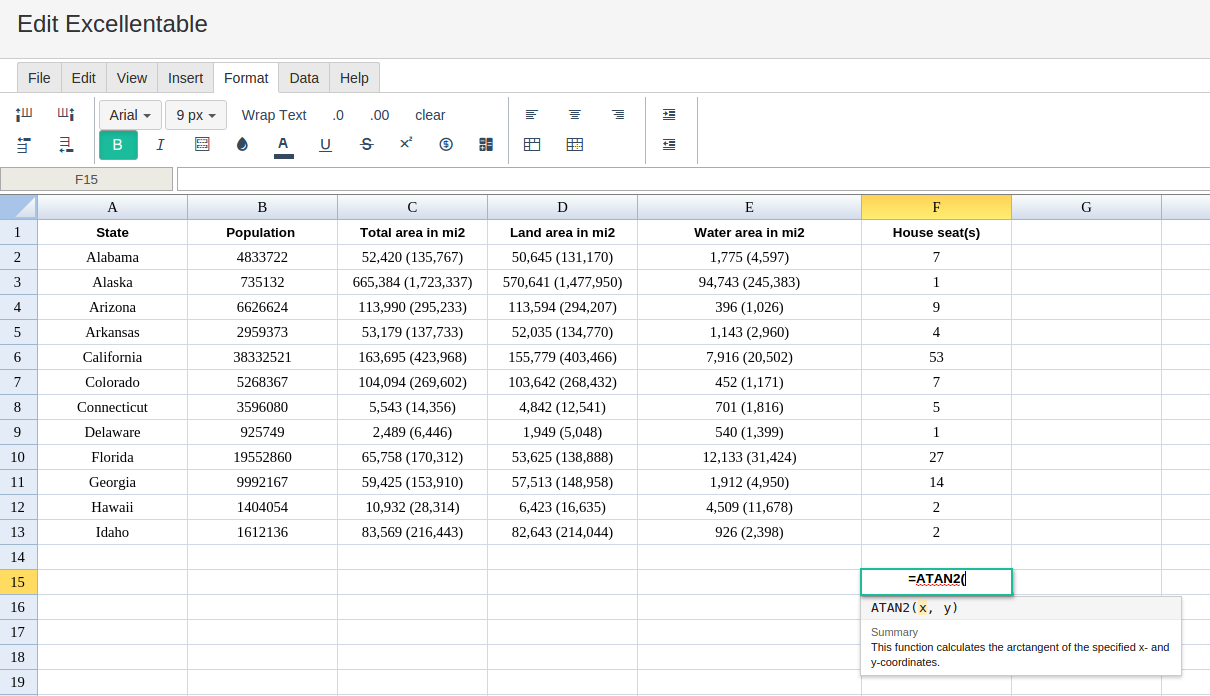

Step 2: Then begin typing the ATAN2 formula in the area you would like to display the outcome:

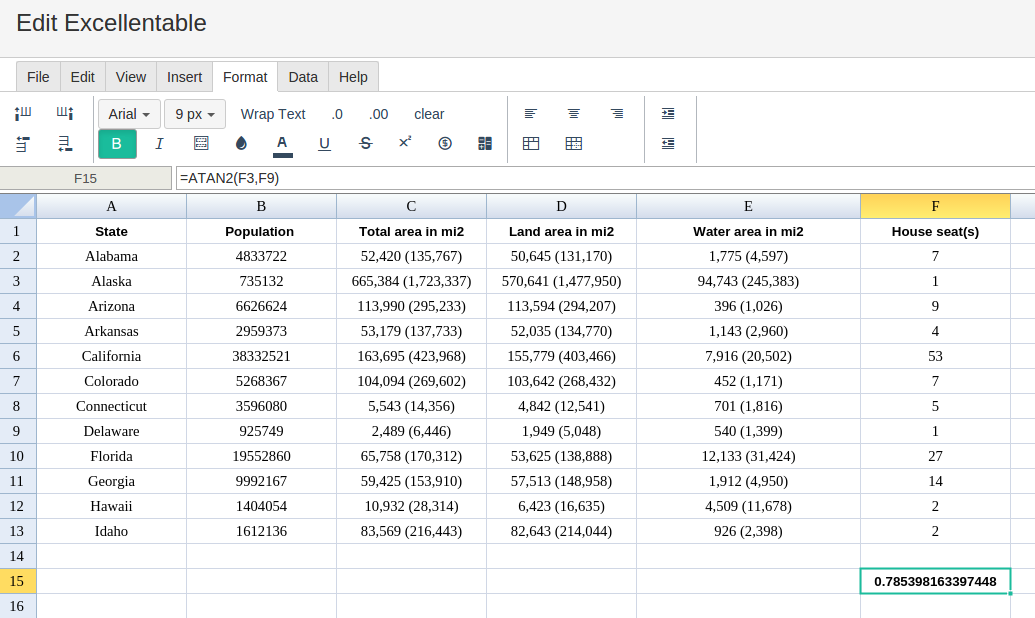

By adding the values you would like to calculate, Excellentable generates the outcome:
