HEX2BIN

Definition of HEX2BIN

Converts a signed hexadecimal number to signed binary format.

Sample Usage

HEX2BIN("f3",8)

HEX2BIN(A2)

Syntax

HEX2BIN(signed_hexadecimal_number, [significant_digits])

  • signed_hexadecimal_number - The signed 40-bit hexadecimal value to be converted to signed binary, provided as a string.

    • The most significant bit of signed_hexadecimal_number is the sign bit; that is, negative numbers are represented in two's complement format.

    • For this function, this value has a maximum of 1FF if positive, and a minimum of FFFFFFFE00 if negative.

    • If signed_hexadecimal_number is provided as a valid hexadecimal number, it will automatically be converted to the appropriate string input. For example, HEX2BIN(199) and HEX2BIN("199") yield the same result: 110011001.

  • significant_digits - [ OPTIONAL ] The number of significant digits to ensure in the result.

    • If this is greater than the number of significant digits in the result, the result is left-padded with zeros until the total number of digits reaches significant_digits.

    • This value is ignored if the most significant bit of signed_hexadecimal_number is 1; that is, if the expressed signed_hexadecimal_number is greater than or equal to 8000000000.

Notes

  • As with any hexadecimal value, only the digits 0-9 and the letters A-F are valid. Digits other than these will cause HEX2BIN to return a #NUM! error.

    • Hexadecimal digits are not case-sensitive; a-f and A-F are equivalent.
  • If the number of digits required is greater than the specified significant_digits, the #NUM! error is returned.

  • Ensure that any calculations using the result of HEX2BIN take into account that it is in binary. Results will be silently converted; thus if cell A2 contains 11111, the binary equivalent of hexadecimal 1F, and B2 contains a formula such as =A2+9, the result will be 11120, which is incorrect in binary calculation.

See Also

OCT2HEX: Converts a signed octal number to signed hexadecimal format.

OCT2DEC: Converts a signed octal number to decimal format.

OCT2BIN: Converts a signed octal number to signed binary format.

HEX2OCT: Converts a signed hexadecimal number to signed octal format.

HEX2DEC: Converts a signed hexadecimal number to decimal format.

DEC2OCT: Converts a decimal number to signed octal format.

DEC2HEX: Converts a decimal number to signed hexadecimal format.

DEC2BIN: Converts a decimal number to signed binary format.

BIN2OCT: Converts a signed binary number to signed octal format.

BIN2HEX: Converts a signed binary number to signed hexadecimal format.

BIN2DEC: Converts a signed binary number to decimal format.

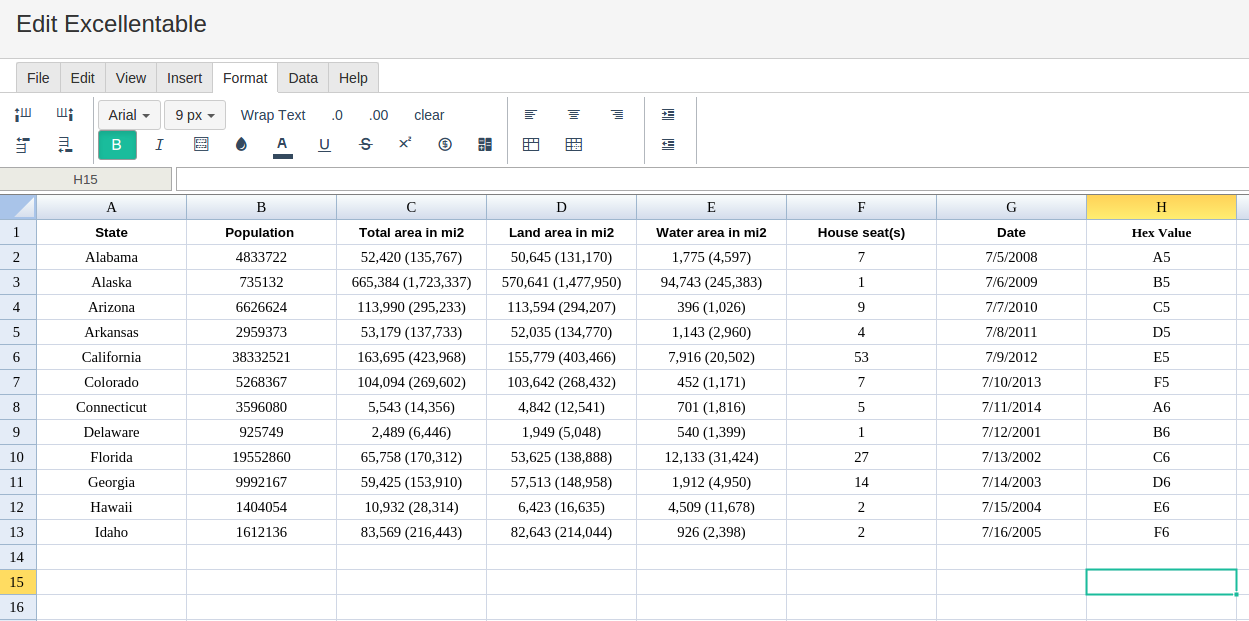

In order to use the HEX2BIN formula, start with your edited Excellentable:

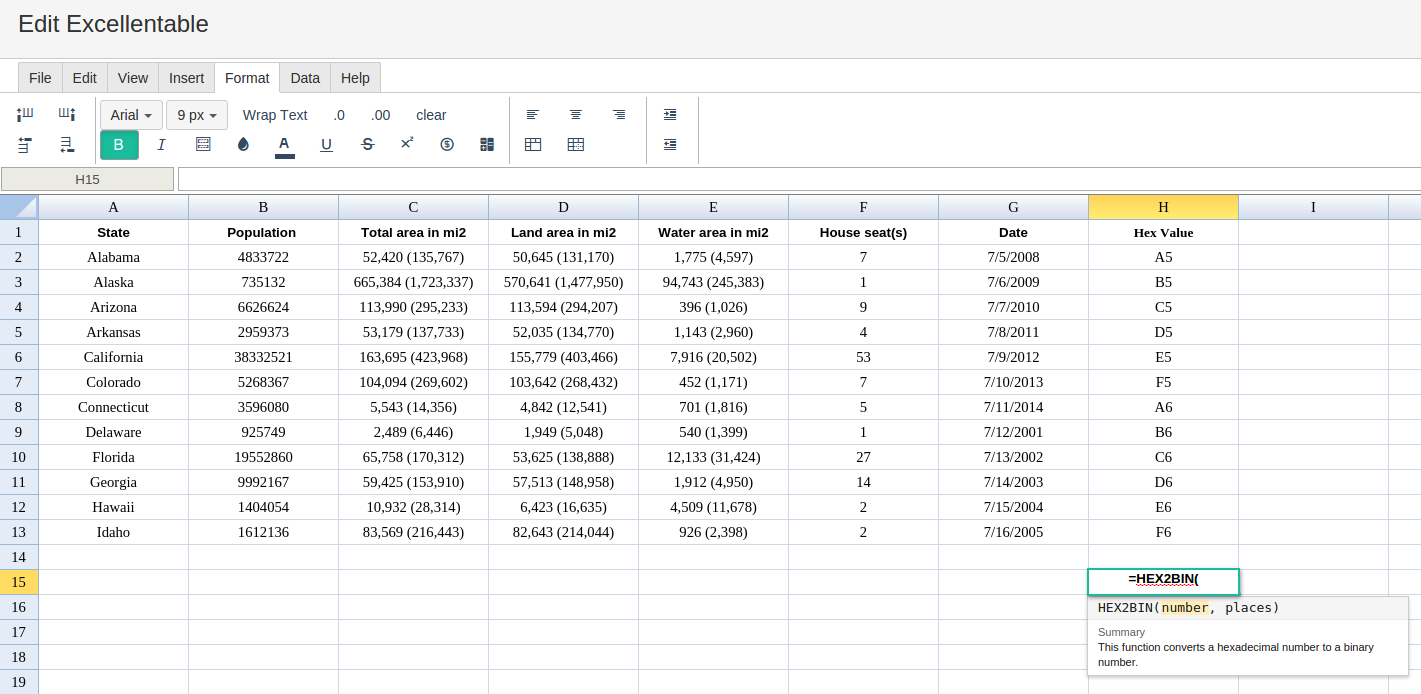

Then type in the HEX2BIN Formula in the area you would like to display the outcome:

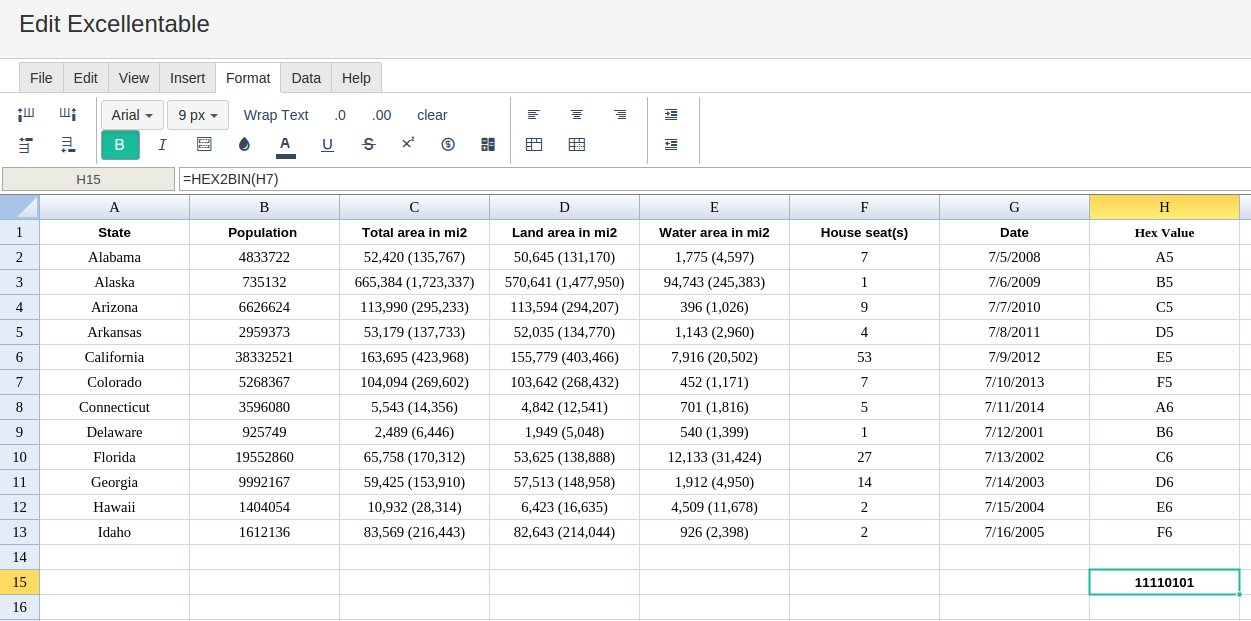

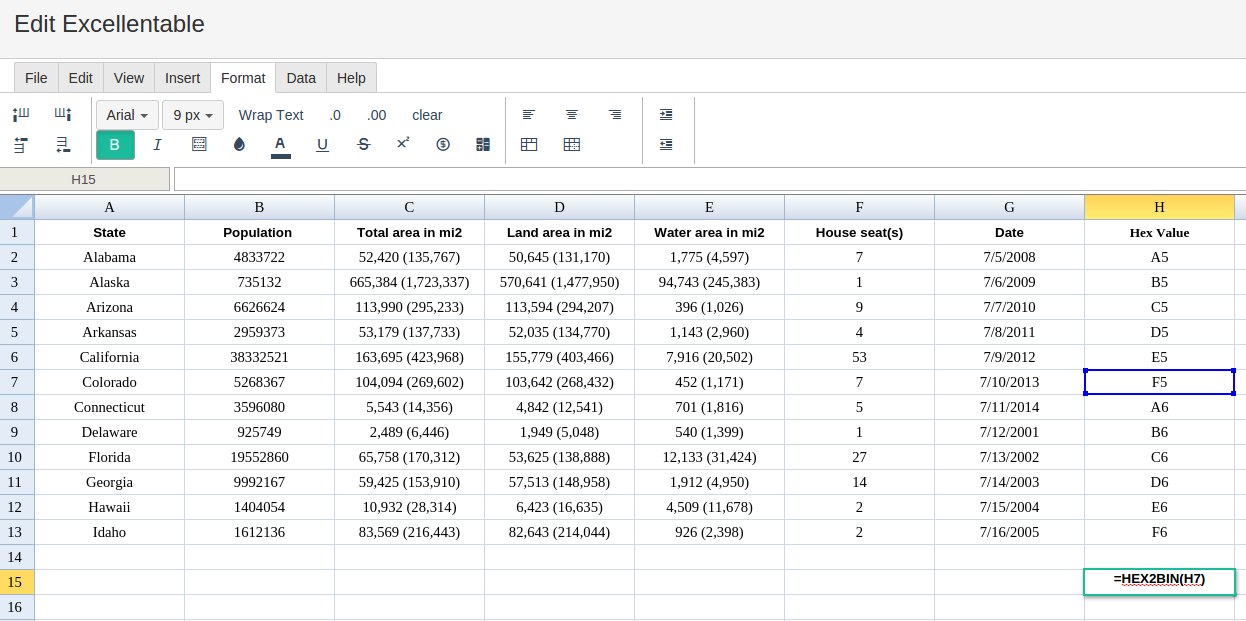

By adding the value you would like to calculate the HEX2BIN formula for, Excellentable will generate the outcome:



A
B
C
D
1
State
Population
Total area in mi2
Land area in mi2
Water area in mi2
House seat(s)
2
Alabama
4833722
52,420 (135,767)
50,645 (131,170)
3
Alaska
735132
665,384 (1,723,337)
570,641 (1,477,950)
4
Arizona
6626624
113,990 (295,233)
113,594 (294,207)
5
Arkansas
2959373
53,179 (137,733)
52,035 (134,770)
6
California
38332521
163,695 (423,968)
155,779 (403,466)
7
Colorado
5268367
104,094 (269,602)
103,642 (268,432)
8
Connecticut
3596080
5,543 (14,356)
4,842 (12,541)
9
Delaware
925749
2,489 (6,446)
1,949 (5,048)
10
Florida
19552860
65,758 (170,312)
53,625 (138,888)
11
Georgia
9992167
59,425 (153,910)
57,513 (148,958)
12
Hawaii
1404054
10,932 (28,314)
6,423 (16,635)
13
Idaho
1612136
83,569 (216,443)
82,643 (214,044)
14
15
E
F
G
H
1
Date
Hex Value
2
1,775 (4,597)
7
7/5/2008
A5
3
94,743 (245,383)
1
7/6/2009
B5
4
396 (1,026)
9
7/7/2010
C5
5
1,143 (2,960)
4
7/8/2011
D5
6
7,916 (20,502)
53
7/9/2012
E5
7
452 (1,171)
7
7/10/2013
F5
8
701 (1,816)
5
7/11/2014
A6
9
540 (1,399)
1
7/12/2001
B6
10
12,133 (31,424)
27
7/13/2002
C6
11
1,912 (4,950)
14
7/14/2003
D6
12
4,509 (11,678)
2
7/15/2004
E6
13
926 (2,398)
2
7/16/2005
F6
14
15
HEX2BIN:
11110101
