Definition of OCT2HEX

Converts a signed octal number to signed hexadecimal format.

Sample Usage

OCT2HEX(37,8)

OCT2HEX(A2)

Syntax

OCT2HEX(signed_octal_number, [significant_digits])

  • signed_octal_number - The signed 30-bit octal value to be converted to signed hexadecimal, provided as a string.

    • The most significant bit of signed_octal_number is the sign bit; that is, negative numbers are represented in two's complement format.

    • For this function, this value has a maximum of 3777777777 if positive, and a minimum of 4000000000 if negative.

    • If signed_octal_number is provided as a valid octal number, it will automatically be converted to the appropriate string input. For example, OCT2HEX(177) and OCT2HEX("177") yield the same result:7F.

  • significant_digits - [ OPTIONAL ] - The number of significant digits to ensure in the result.

    • If this is greater than the number of significant digits in the result, the result is left-padded with zeros until the total number of digits reaches significant_digits.

    • This value is ignored if the most significant bit of signed_octal_number is 1; that is, if the expressed signed_octal_number is greater than or equal to 4000000000.

Notes

  • As with any octal value, only the digits 0-7 are valid. Digits outside of this will cause OCT2HEX to return a #NUM! error.

  • If the number of digits required is greater than the specified significant_digits, the #NUM! error is returned.

See Also

OCT2DEC: Converts a signed octal number to decimal format.

OCT2BIN: Converts a signed octal number to signed binary format.

HEX2OCT: Converts a signed hexadecimal number to signed octal format.

HEX2DEC: Converts a signed hexadecimal number to decimal format.

HEX2BIN: Converts a signed hexadecimal number to signed binary format.

DEC2OCT: Converts a decimal number to signed octal format.

DEC2HEX: Converts a decimal number to signed hexadecimal format.

DEC2BIN: Converts a decimal number to signed binary format.

BIN2OCT: Converts a signed binary number to signed octal format.

BIN2HEX: Converts a signed binary number to signed hexadecimal format.

BIN2DEC: Converts a signed binary number to decimal format.

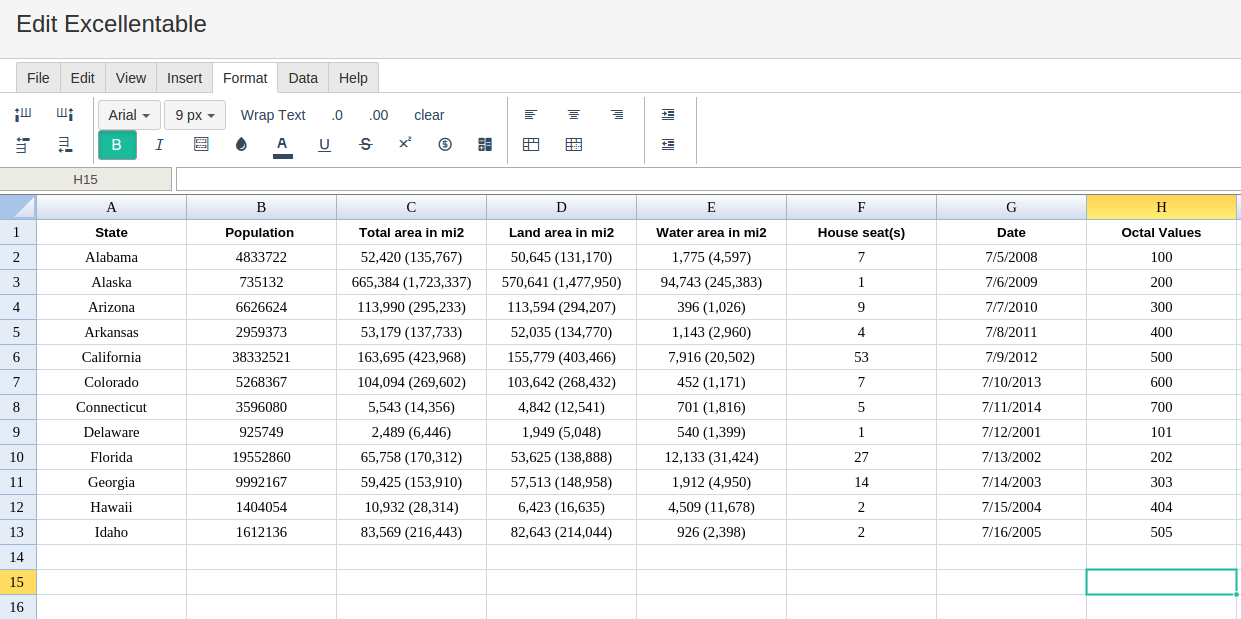

In order to use the OCT2HEX formula, start with your edited Excellentable:

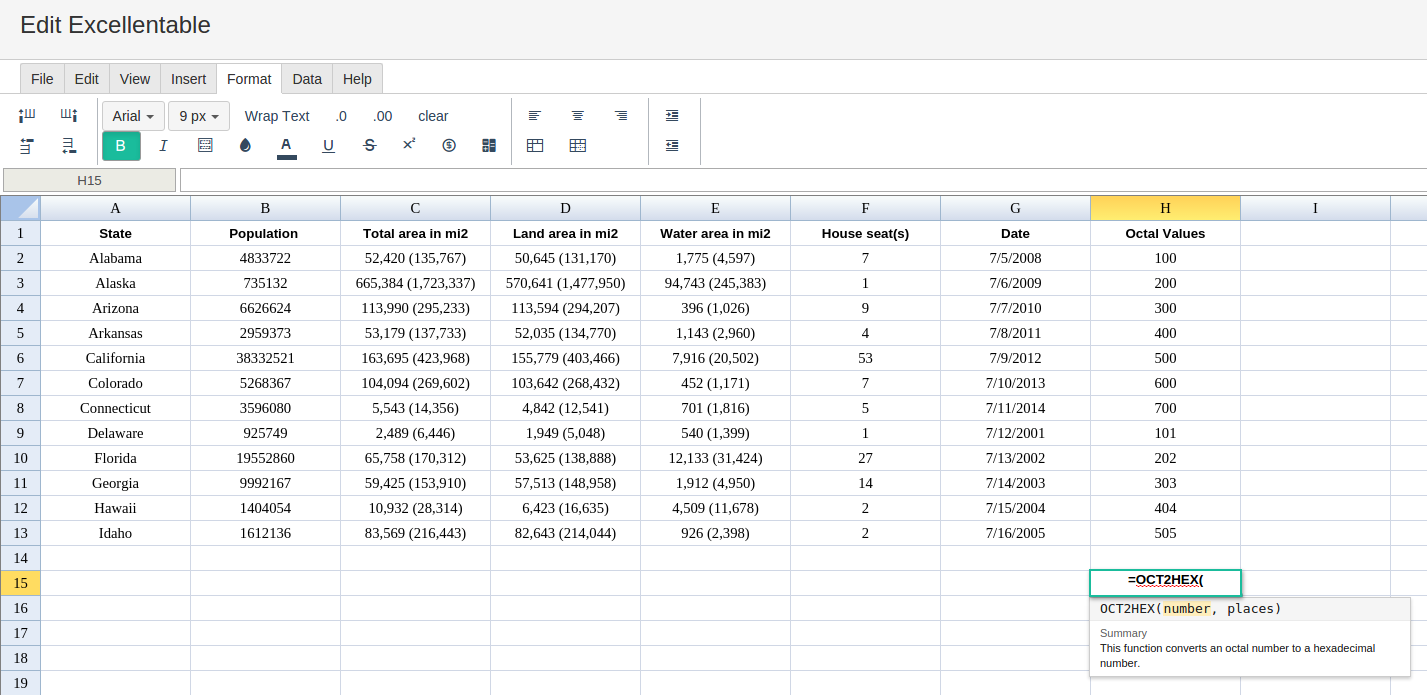

Then type in the OCT2HEX Formula in the area you would like to display the outcome:

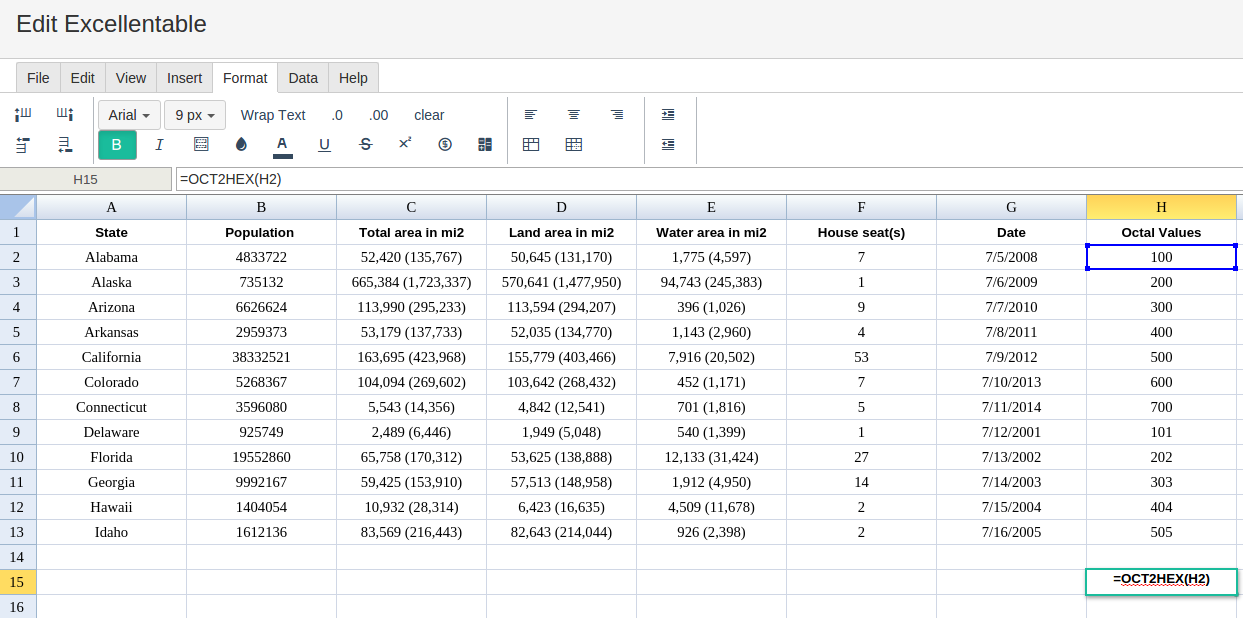

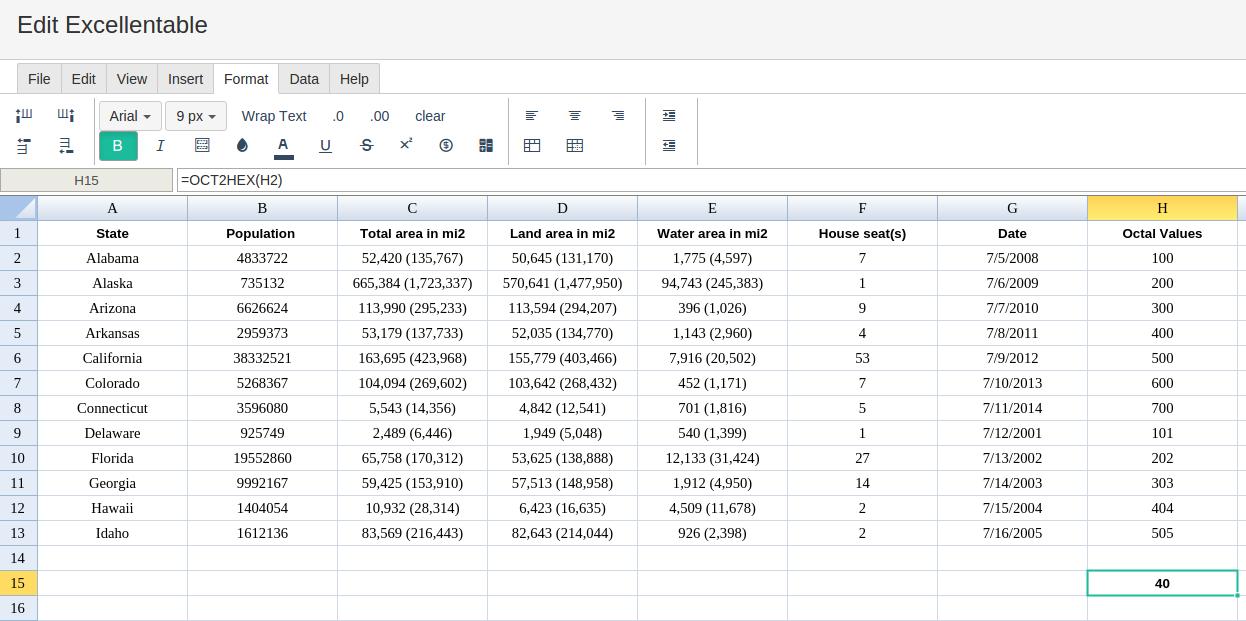

By adding the value you would like to calculate the OCT2HEX formula for, Excellentable will generate the outcome:
