This page enlists the steps to set up the Newton Collaborative Editing Server behind the firewall and the instructions to connect it with the Confluence Data center.

Using Newton Docker Image


Pre-requisite

  1. Install Docker 18.09+
  2. Install docker-compose
  3. Install and configure Nginx and apply SSL certificates (the default port for redirection is 8080)

Install and run the Newton CES

  1. Pull Docker image from Docker hub

    docker pull addteq/newton:latest
    CODE
  2. Create an environment file "excellentable.env" and add values for the below variables. All fields are required
DatabaseType={type of external database (postgres/mysql/mssql/oracle)}
DatabaseHostname={database hostname or ip}
DatabasePort={database port}
DatabaseName={database name}
DatabaseUser={database user that will be used to access database}
DatabasePassword={password for database user}
AdminUser={admin username}
AdminPassword={password for admin user}
ConfluenceUrl={confluence base url}
POWERSHELL

Set the confluence base url precisely the same as shown in confluence-admin → General config



   1. Create docker-compose.yml and excellentable.env file.

    1. With external DB

      docker-compose.yml

      ---
      version: "2"
      services:
        app:
          image: addteq/newton:latest
          restart: always
          ports:
            - '8080:8080'
          env_file: excellentable.env
      CODE
    2. With dockerized DB (Sample docker-compose.yml , excellentable.env and db.env files for Postgres DB)

      docker-compose.yml

      ---
      version: "2"
      services:
        db:
          image: 'postgres:9.4'
          restart: always
          ports:
            - '24638:5432'
          volumes:
            - ./Volumes/newton/postgres:/var/lib/postgresql/data
          env_file: db.env

        app:
          image: addteq/newton:latest
          restart: always
          depends_on:
            - "db"
          ports:
            - '8080:8080'
          env_file: excellentable.env
      CODE

      excellentable.env

      DatabaseType=postgres
      DatabaseHostname=db
      DatabasePort=5432
      DatabaseName=confluence
      DatabaseUser=confluence
      DatabasePassword=thae0Aer
      AdminUser={admin username (reqired)}
      AdminPassword={password for admin user (required)}
      ConfluenceUrl={confluence base url (required)}
      YML


      If you are using option "b" from above, then create a "db.env" file as well with the below variables and corresponding values.

      POSTGRES_USER=confluence
      # also the database name

      POSTGRES_PASSWORD=thae0Aer
      PGPASSWORD=thae0Aer
      CODE

    2. Start the newton server

docker-compose up -d
CODE


    3. Tail logs using docker

docker-compose logs -f
CODE

Using Debian and RPM Package


Using Newton Debian Package


Pre-requisite

  1. Ubuntu 18.04 server
  2. Sudo permission to install the package
  3. Install and configure Nginx and apply SSL certificates (the default port for redirection is 8080)

Install and run the Newton CES

  1. Download and Extract the Newton Debian package

    wget https://cdn.addteq.com/addteq/excellentable/newton/deb/1.0.0/addteq-newton-1.0.0.deb
    CODE
  2. Install the Newton Debian package

    sudo apt-get update
    sudo apt-get install ./addteq-newton-1.0.0.deb
    CODE

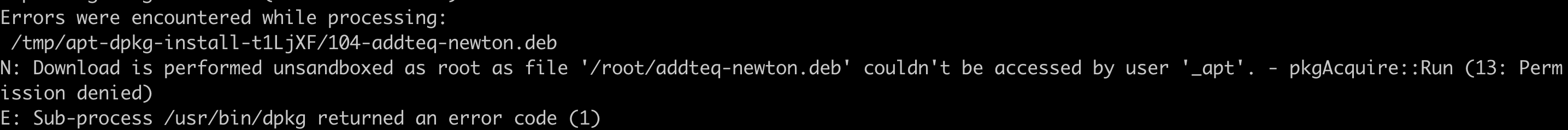

    You may see a similar error as below:



    If you get the above error, run the following command:

    sudo chown _apt /var/lib/update-notifier/package-data-downloads/partial/
    CODE
  3. Set the environment variables by running the script newton-setup-env.sh

    cd /opt/addteq-newton
    ./newton-setup-env.sh
    CODE

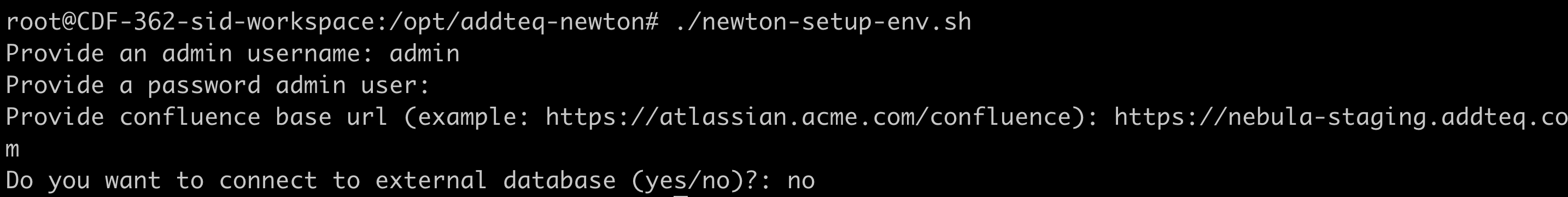

    Usage: The script newton-setup-env.sh is used to create the environment file required for Newton CES

    There are 2 ways to run newton-setup-env.sh:

    1. Interactive Mode to set variables in one go:

    ./newton-setup-env.sh #no argument required
    CODE

    2. Options Mode to set variables one by one:

    ./newton-setup-env.sh [options as listed below]

    Options:
               -h or --help ... help message
               -a or --admin-user ... admin username (required)
               -p or --admin-password ... password for admin user (required)
               -c or --confluence-url ... confluence base url (required)
               -d or --database-type ... type of external database (postgres/mysql/mssql/oracle)
               -l or --database-hostname ... database hostname or ip
               -P or --database-port ... database port
               -n or --database-name ... database name
               -u or --database-user ... database user that will be used to access database
               -w or --database-password ... password for database user


    CODE

    Make the confluence-url precisely the same as shown in confluence-admin → General config

  4. Restart the service for newton

    sudo systemctl restart addteq-newton
    CODE

Using Newton RPM Package


Pre-requisite

  1. Centos/RedHat server
  2. Sudo permission to install the package
  3. Install and configure Nginx and apply SSL certificates (the default port for redirection is 8080)
  4. Database parameters are optional if the user plans to use embedded H2 databases (not recommended for production)

Install and run the Newton CES

  1. Download and extract the Newton RPM package

    wget https://cdn.addteq.com/addteq/excellentable/newton/rpm/1.0.0/addteq-newton-1.0.0.rpm
    CODE
  2. Install the Newton RPM package

    sudo yum install addteq-newton-1.0.0.rpm
    CODE
  3. Setup the environment by running the script newton-setup-env.sh

    cd /opt/addteq-newton
    ./newton-setup-env.sh
    CODE

    Usage: The script newton-setup-env.sh is used to create the environment file required for the Newton CES

    There are 2 ways to run newton-setup-env.sh:

    1. Interactive Mode to set variables in one go:

    ./newton-setup-env.sh    #no argument required
    CODE


    2. Options Mode to set variables one by one:

    ./newton-setup-env.sh [options as listed below]

    Options:
               -h or --help ... help message
               -a or --admin-user ... admin username (required)
               -p or --admin-password ... password for admin user (required)
               -c or --confluence-url ... confluence base url (required)
               -d or --database-type ... type of external database (postgres/mysql/mssql/oracle)
               -l or --database-hostname ... database hostname or ip
               -P or --database-port ... database port
               -n or --database-name ... database name
               -u or --database-user ... database user that will be used to access database
               -w or --database-password ... password for database user


    CODE

    Make the confluence-url precisely the same as shown in confluence-admin → General config

  4. Restart the service for newton

    sudo systemctl restart addteq-newton
    CODE
